RTF350M Modular Impact Crushing Plant
RTF350M Modular Impact Crushing Plant.jpg

RTF350M Modular Impact Crushing Plant

The Runtianzhike modular counterattack crushing station has a compact structure and integrated design, with a small construction area. The crushing host adopts new manufacturing technology and a unique structural design, resulting in a higher crushing ratio stronger crushing capacity, and finished products that are cubical with no tension or cracks. The particle shape is good, and the size of the discharge particle can be adjusted by hydraulic pressure, with diversified crushing specifications. It has a low investment cost and good economy.

Application scenario: It is widely used in coarse crushing and medium crushing in various medium hardness crushing processes, as well as for crushing all types of mine rocks. It is suitable for industries such as highway, railway, water conservancy, electricity, and construction. It is used for the production of sand and stone for construction purposes and for crushing and recycling various types of slag, cave slag, waste asphalt concrete, and tailings and waste rock.

Actual output: 150-250t/h, Weight: 40t, Transportation size: Disassembly for Transport

Crushing capacity:350tph, Power: 310kw

    Contact us
    product details
    product description

    Product Parameters

    RTF350M Modular Impact Crushing Plant
    Feeding Device Max.feeding Size 600mm
    Hopper Volume 5m3
    Vibrating Feeder Vibrating Motor Power 2*5.5kW
    Crusher Crusher Model Np1313
    Crusher Motor Power 250kW
    Main Conveying Belt Belt Width B1000mm
    Power 15kW
    Mixed Material Conveying Belt Belt Width  B1000mm
    Power  11kW
    Returned Material Conveying Belt Belt Width  B650mm
    Power 5.5kW
    Transmission Conveying Belt Belt Width  B500mm
    Power  3kW
    Vibrating screenVibrating screen Whole MachineWhole Machine Number of Sieve Layers 1
    Screen Mesh Srea  4500mm*1500mm
    Total Power  309kW
    Total Weight  56t
    Working Mode External Power Supply
    Working Dimension  18.3mx5.4mx4.8m
    Transportation Dimension Disassembly & Shipping

    Product characteristics

    01

    Machine Characteristics

    Suitable for fixed place, bright stability, high performance cost ratio.

    02

    Stable host rack

    The host rack is suitable for heavy design, using first-class steel, solid and reliable.

    03

    Strong Crushing Host

    RTPF series crushing machine perfect combination of heavy rotor high wear-resistant material, and reasonable crushing chamber design,significantly improve production capacity and product grain quality, reduce wear costs; Equipped with fully hydraulic counter plate discharge port adjustment device, more convenient operation.

    04

    Advanced Control System

    Adopting a dual control mode of wireless remote control and local operation, with a high-definition display screen making visual operation more convenient.

    05

    Intelligent Feeding System

    The vibrating feeder adopts automatic frequency conversion feeding, which can adjust the feeding frequency by monitoring the size of the main broken motor so as to control the loading size of the main engine and reduce the failure rate of the equipment.

    05

    Easy Maintenance

    There is a safety observation platform for the silo and main engine，which can make the maintenance and overhaul more convenient.

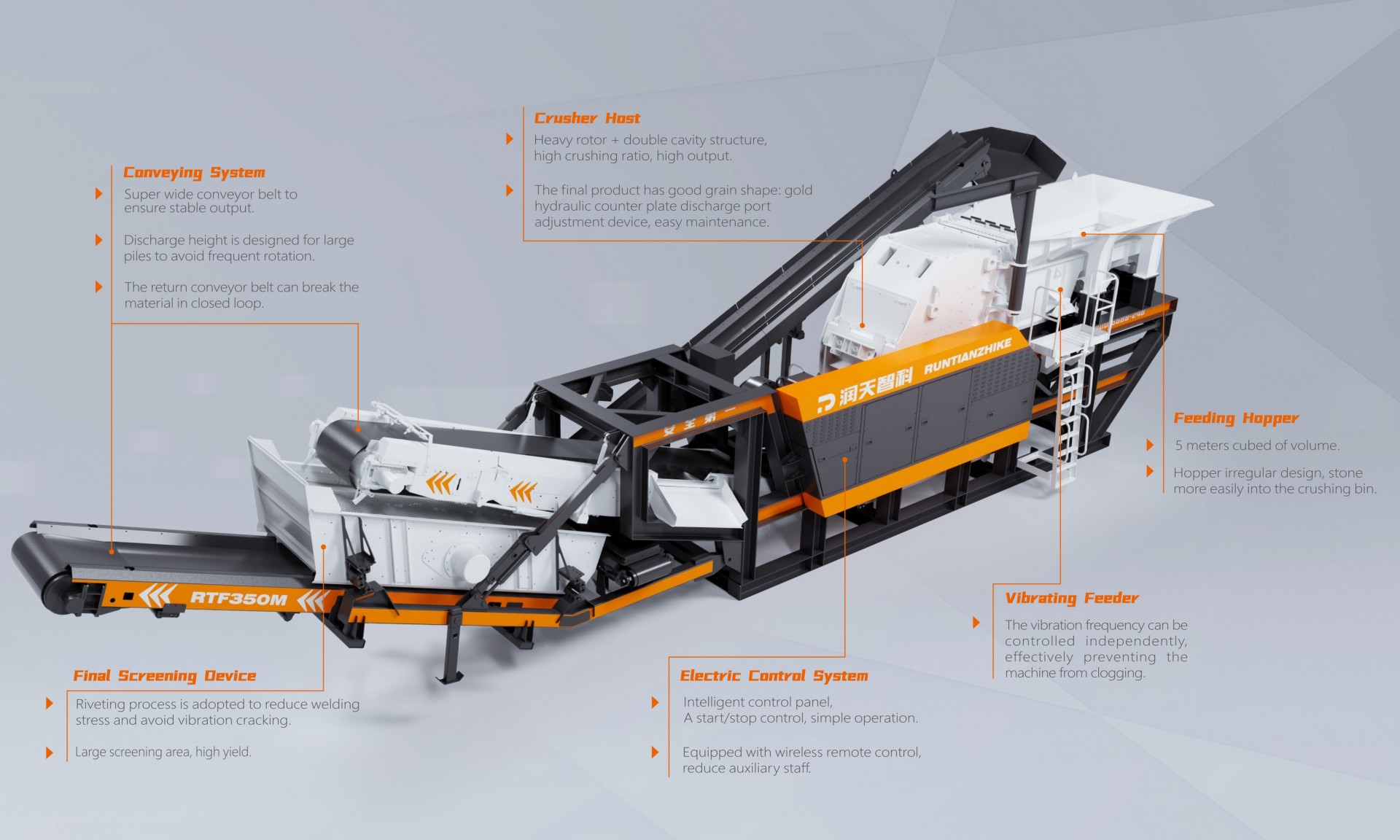

    Function module

    RTF360M

    01

    Conveying System

    Super wide conveyor belt to ensure stable output.
    Discharge height is designed for large piles to avoid frequent material transferring.
    The return conveyor belt can break the material in closed & cyclic loop.

    02

    Crusher Host

    Heavy rotor + double cavity structure high crushing ratio, high output. Particle shape.
    The final product has good grain shape: full hydraulic counter plate discharge port adjustment device, easy maintenance.

    03

    Final Screening Device

    Riveting process is adopted to reduce welding stress and avoid vibration cracking. Side vibrating motor driving, avoid power loss easy maintenance.
    Large screening area, high yield.

    04

    Electric Control System

    Intelligent control panel One-key start/stop control, simple operation.
    Equipped with wireless remote control reducing auxiliary staff.

    05

    Vibrating Feeder

    The vibration frequency can be controlled independently, effectively prevent the machine from jamming.

    06

    Feeding Hopper

    5 m3 cubed of volume.
    Hopper irregular design, stone more easily into the crushing bin.
