RT5015H Mobile Scalping Screen
RT5015H Mobile Scalping Screen.jpg

RT5015H Mobile Scalping Screen

RT5015H crawler type mobile scalping screen is a durable, sturdy, and high-performance equipment designed for handling heavy screening work, no matter rock blasting or large solid waste materials, the RT5015H crawler type mobile scalping screen can easily handle it and provide good finished materials

Wide application range: precise screening of sand and gravel aggregates such as concrete, asphalt, construction waste, and natural stone, as well as screening of raw materials with high mud content or pre-screening of raw materials before crushing.

    Contact us
    product details
    product description

    Product Parameters

    Feeding Device Max.feeding Size 500mm
    Hopper Volume 6m³
    Feeding Height 4100mm
    Feeding Capacity 500t/h
    Screener Screening Area 5000mm*1500mm
    Number of Sieve Layers 2
    Main Conveying Belt Belt Width B1000mm
    Power 2*11kW
    Coarse Material Conveying Belt Belt Width B1200mm
    Power 11kW
    Medium-Sized Material Conveying Belt Belt Width B800mm
    Power 7.5kW
    Fine Materia  Conveying Belt Belt Width B800mm
    Power 7.5kW
    Transmission Conveying Belt Belt Width B1200mm
    Whole Machine Total Power 62kw
    Total Weight 37t
    Processing Capacity 200-500t/h
    Working Dimension 17.5m×14.8m×4.8m
    Transportation Dimension 18.5m×3.8m×3.8m

    Product characteristics

    01

    Durable Chain Plate Feeder

    Equipped with a chain plate feeder sturdy and durable, to avoid damaging the feeding device when the feeding particles are too large.

    02

    Intuitive and Simple Control System

    Adopting a dual control mode of wireless remote control and local touch screen, the operation is more convenient.

    03

    Screening Device

    The angle of the screening box can be widely adjusted, and can be ideally adjusted according to the raw materials to improve screening capacity and product quality.

    04

    Multiple Driving Modes

    There are two driving modes to choose from, diesel and electric, to meet the requirements of different working conditions.

    05

    Convenient Maintenance and Upkeep

    All components are very easy to access, enabling fast and convenient services.

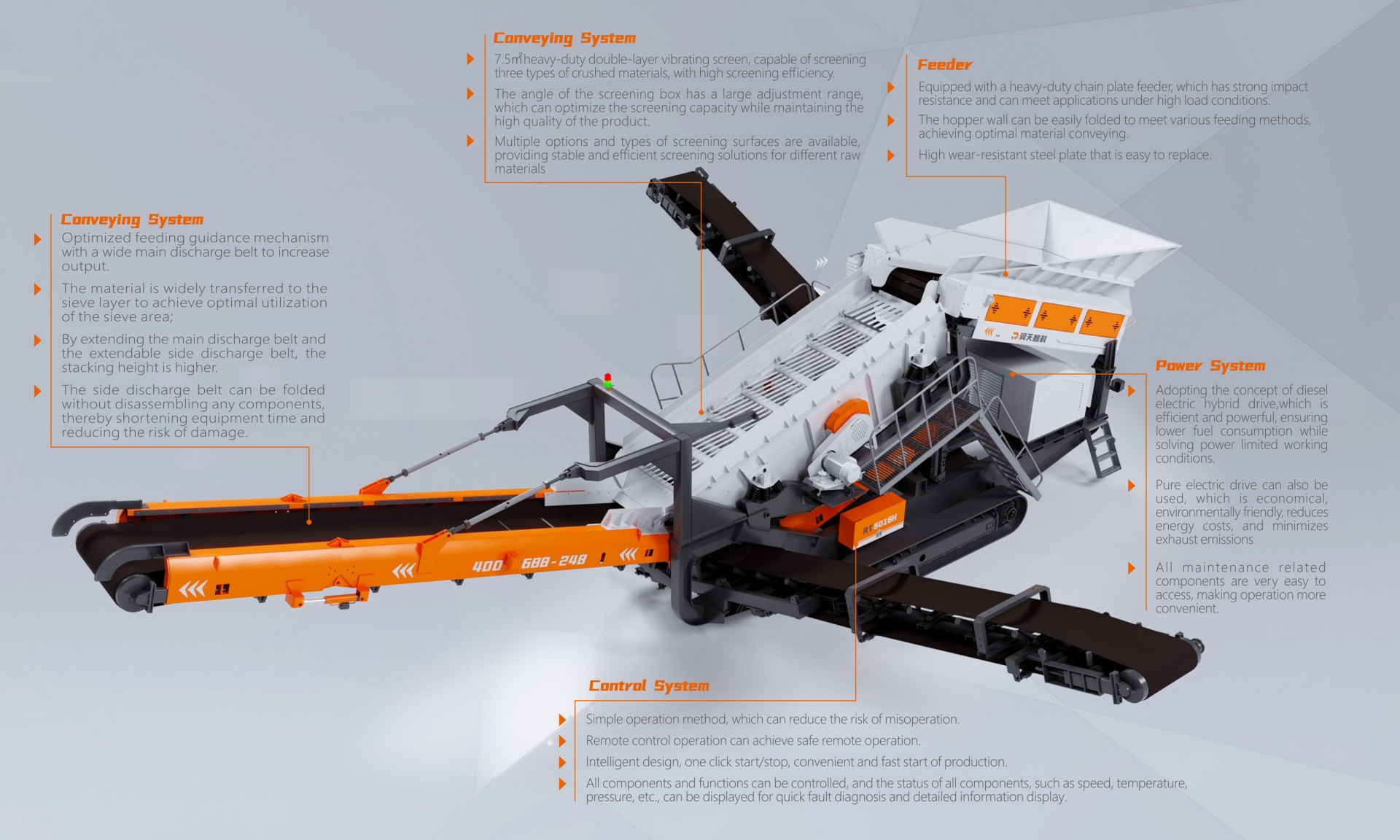

    Function module

    RT5015H-1

    01

    Conveying System

    Optimized feeding guidance mechanism with a wide main discharge belt to increase output.
    The material is widely transferred to the sieve layer to achieve optimal utilization of the sieve area;
    By extending the main discharge belt and the extendable side discharge belt, the stacking height is higher.
    The side discharge belt can be folded without disassembling any components, thereby shortening equipment time and reducing the risk of damage.

    02

    Conveying System

    7.5㎡heavy-duty double-layer vibrating screen, capable of screening three types of crushed materials, with high screening efficiency.The angle of the screening box has a large adjustment range, which can optimize the screening capacity while maintaining the high quality of the product.
    Multiple options and types of screening surfaces are available, providing stable and efficient screening solutions for different raw materials.

    03

    Feeder

    Equipped with a heavy-duty chain plate feeder, which has strong impact resistance and can meet applications under high load conditions. The hopper wall can be easily folded to meet various feeding methods, achieving optimal material conveying. High wear-resistant steel plate that is easy to replace.

    04

    Power System

    Adopting the concept of diesel electric hybrid drive,which is efficient and powerful, ensuring lower fuel consumption while solving power limited working conditions.
    Pure electric drive can also be used, which is economical, environmentally friendly reduces energy costs, and minimizes exhaust emissions.
    All maintenance related components are very easy to access,making operation more convenient.

    05

    Control System

    Simple operation method, which can reduce the risk of misoperation.
    Remote control operation can achieve safe remote operation.
    Intelligent design, one click start/stop, convenient and fast start of production.
    Al components and functions can be controlled, and the status of all components, such as speed, temperature, pressure, etc., can be displayed for quick fault diagnosis and detailed information display.
