RT3YK6020M Modular Screening Plant
RT3YKG020M Modular Screening Plant.jpg

RT3YK6020M Modular Screening Plant

Runtianzhike modular screening station is a high efficient screening equipment of strong, durable, stable, and reliable with high-efficiency screening capabilities. Additionally, it has good economy and low investment costs.

Application scenarios: It is widely used in screening operations in various crushing and screening processes, such as screening of mining materials and aggregates in crushing asphalt and concrete mixing stations, and solid waste resource utilization, including house demolition, road concrete recycling, and material screening in other industries.

Processing Capacity:300tph, Power:48.5kw,

Working Size: 13.0x13.2X5.6ength * width * height),

Machine Weight: 24t, Transport Size: Disassembled for Transportation

    Contact us
    product details
    product description

    Product Parameters

    Feeding Device Max.feeding Size 150mm
    Feeding Height 2400mm
    Hopper Volume 3m3
    Feeding Capacity 300t/h
    Feeding Conveyor Belt Belt Width B1000mm
    Screener Screening Area  6000mm*2000mm
    Number of Sieve Layers 3
    Coarse Material ConveyingBeit Belt Width  B500mm
    Power  4kW
    Medium-Sized Material Conveying Belt Belt Width B500mm
    Power 4kW
    Fine Material Conveying Belt Belt Width  B500mm
    Power 4kW
    Filler Conveying Belt Belt Width  B1000mm
    Power  4kW
    Whole Machine Total Power 49.5KW
    Total Weight  24t
    Processing Capacity 120-300t/h
    Worlang Dimension  12.7mx13.0mx5.9m
    Transportation Dimension Disassembly & Shipping

    Product characteristics

    01

    Easy Maintenance

    The vibrating screen can be raised and lowered by hydraulic pressure and is equipped with a maintenance walkway which facilitates inspection,maintenance, and replacement of the screen mesh.

    02

    Integrated Control

    The use of industrial controller integrated control technology enables the entire machine to be started and stopped with a single button, making the operation simpler.

    03

    High Efficiency screening

    Complete screening system, high efficiency and stability. without on-site installation and debugging, can be quickly put into production.

    04

    Independent Control System

    The control system has an independent box structure and can be equipped with air conditioning and monitoring systems which greatly reduces the influence of dust, temperature, water and other unfavorable factors on the control system.

    05

    Widely Used

    A three-layer screen mesh design is capable of screening four types of materials. Each layer can feature multiple screen surfaces with different mesh sizes.

    05

    Machine Characteristics

    Suitable for fixed locations, with high stability and cost-effectiveness.

    Function module

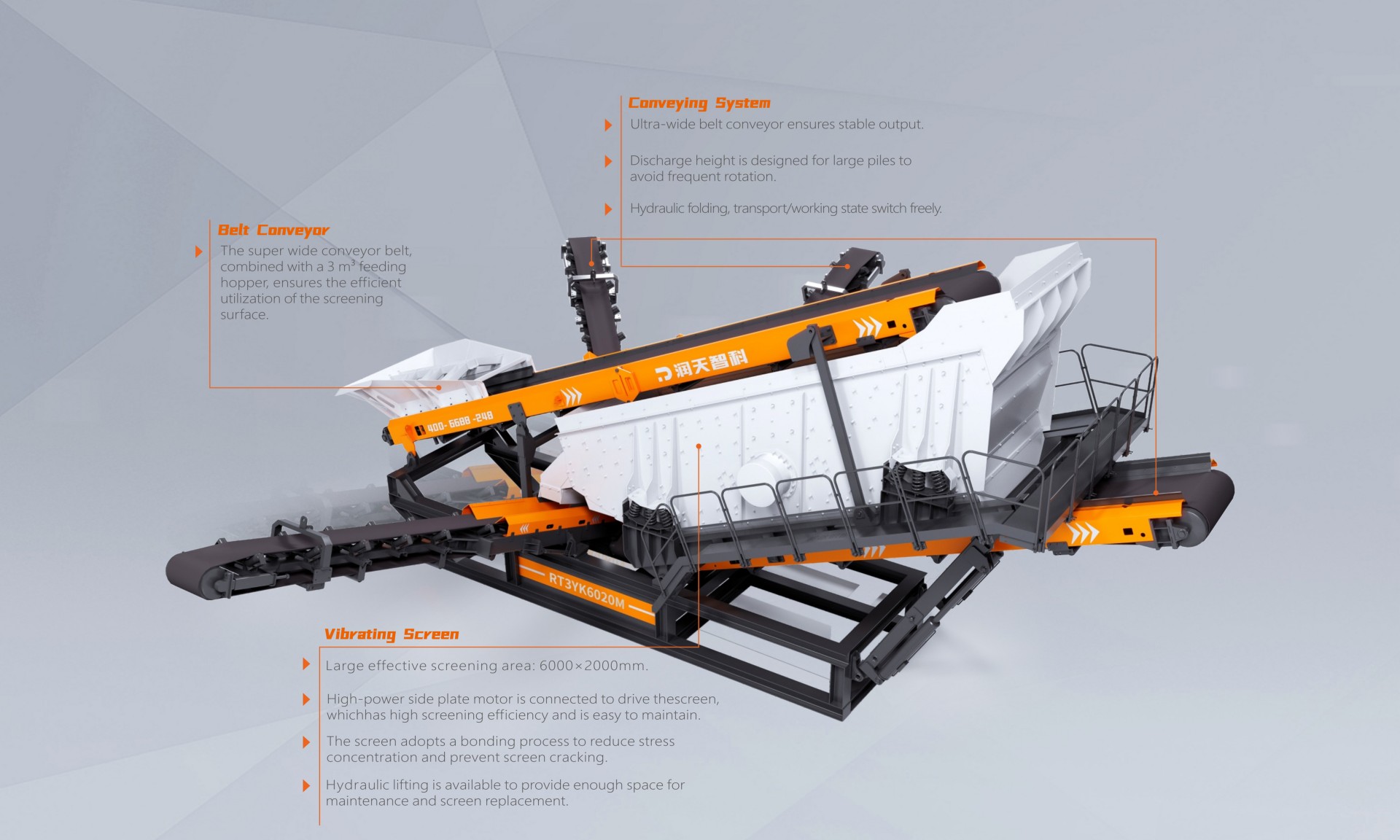

    RT3YK6020M-1

    01

    Belt Conveyor

    The super wide conveyor belt combined with a 1.6m3 feeding hopper ensures the efficient utilization of the screening surface.

    02

    Conveying System

    Ultra-wide belt conveyor ensures stable output.
    Discharge height is designed for large piles to avoid frequent rotation.
    Hydraulic folding, transport/working state switch freely.

    03

    Vibrating Screen

    Super-large effective screening area: 6000x2000mm.
    High-power side plate motor connected to drive the screen which has high screening efficiency and is easy to maintain.
    The screen adopts a rivet process to reduce stress concentration and prevent screen cracking.
    Hydraulic lifting is available to provide enough space for maintenance and screen mesh replacement.
