LCB Series Emulsified Asphalt Cold Regeneration Secondary Mixing Plant
Product Parameters
| Model | LCB600G | LCB800G | |
| Theoretical productvity （t/h) | 600 | 800 | |
| Mixer power (KW) | 2x45+2x55 | 2x55+2x75 | |
| Volume of batching hopper(m³) | 12 | 15 | |
| Quantity of batching hopper(m³) | 4 | 5 | |
| Maximum aggregate particle size(mm) | 60 | 60 | |
| Finished product silo volume(m³) | 10 | 12 | |
| Discharge height of finished poduct silo(m) | 4.1 | 4.1 | |
| Weighing accuracy | Aggregate | ±2% | ±2% |
| Powder | ±1% | ±1% | |
| Water | ±1% | ±1% | |
| Overall power (KW) | 380 | 450 | |
| Apparent dimension(m) | 62x15x20 | 65x15×20 | |
Product characteristics
01
Compact Structure
Modular design with a compact structure, requiring less space, convenient installation & relocation.
02
One machine for dual use
In addition to being a cold regeneration mixing plant, it can also be used as a conventional stabilized soil mixing station, providing dual function to create greater economic benefits for customers.
03
Accurate Dosing
Powder supply adopts dual-dosing of frequency converting screw + transmission bucket reduction scale technology. It dynamically displays instantaneous flow rates and accumulates total flow rates, dosing accuracy is controlled within 1%; The powder adopts secondary dosing with high accuracy; Water supply and emulsified asphalt system adopts intelligent electromagnetic flow meters and frequency-controlled speed regulation technology for accurate dosing and intuitive display.
description2

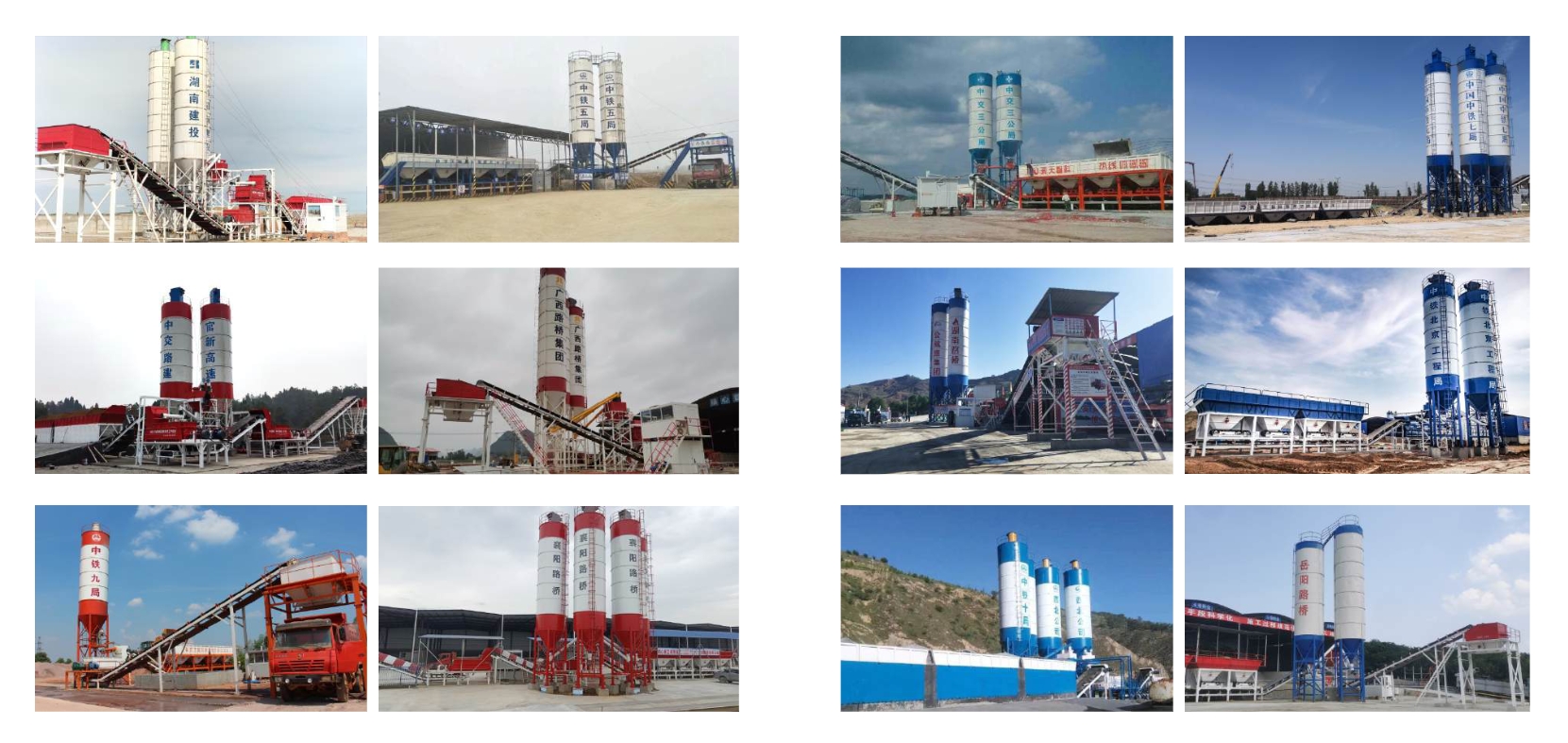

STABILIZED SOIL MIXING PLANT CASE PRESENTATION
