HZS Series Bucket-Lifting Type Container Concrete Mixing Plant
HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (1).jpg
HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (2).jpg
HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (3).jpg

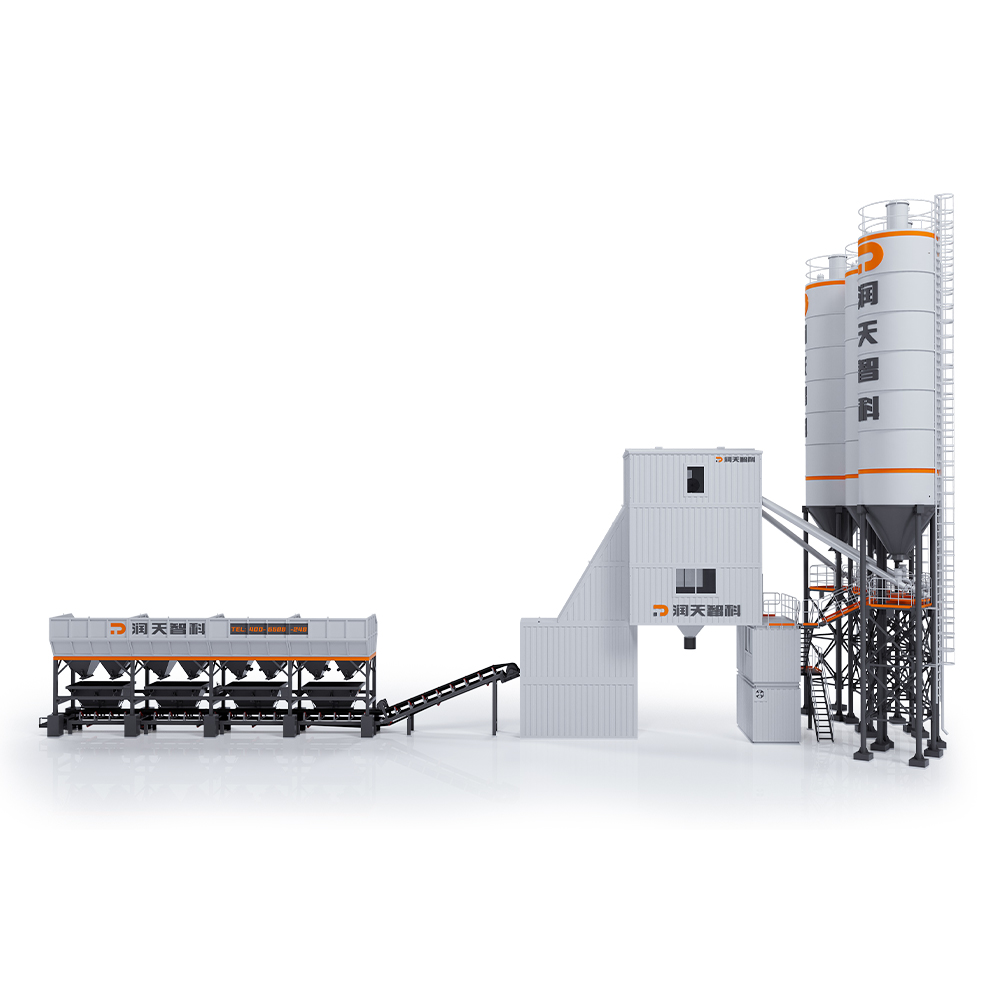

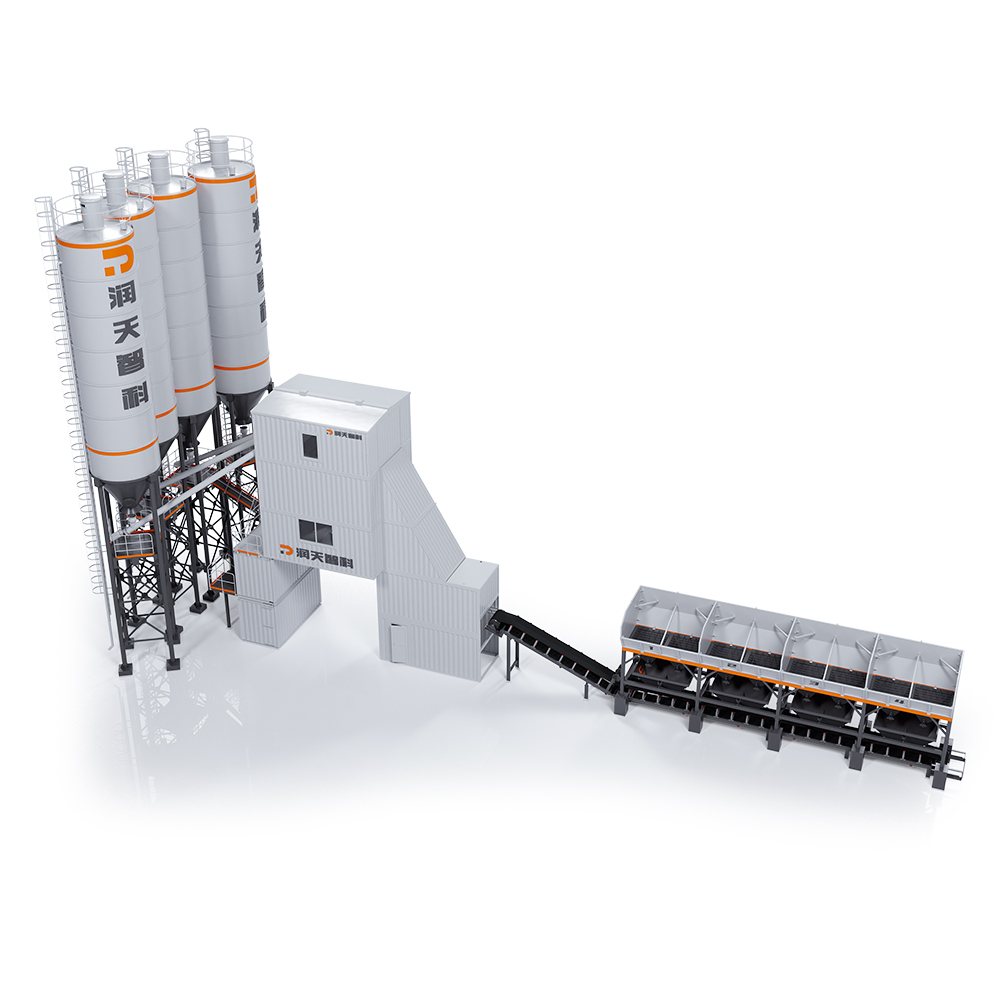

HZS Series Bucket-Lifting Type Container Concrete Mixing Plant

RTZK Bucket-lifting Container Concrete Mixing Plant is a brand new product created based on the modular design concept of the existing product. In addition to the characteristics of the original bucket-lifting type mixing plant, it also has the characteristics of fast installation & relocation, high-end and atmospheric appearance, and is wisely used in the construction of highways, railways, municipal, and urban projects.

    Contact us
    product details
    product description

    HZS Series Bucket-Lifting Type

    Container Concrete Mixing Plant

    Parameter Unit Model
    HZS60TX HZS90TX HZS120TX HZS180TX
    Theoretical productivity m³/h 60 90 120 180
    Model of mixer / JS1000 JS1500 JS2000 JS3000
    Power of mixer kW 2×22 2×30 2×37 2×55
    Recyding period S 60 60 60 60
    Mixer L 1000 1500 2000 3000
    Max size of aggregate mm ≤80 ≤80 ≤80 ≤80
    Capacty of powder silo t 2×100 3×100 4x100 4×150
    Batching capacty of the batdhing station L 1600 2400 3200 4800
    Capacity of aggregate sio m³ 3×10 4×15 4×20 4×25
    Materia discharging height m 4.2 4.2 4.2 4.2
    nstalled power kW 120 150 190 240
    Maximum capacity of screw conveyof t/h 40 40 80 80
    Aggregate weighing range/acuray kg 1500±2% 2000±2% 2000±2% 3000±2%
    Cement weighing rang/acuracy kg 600±1% 800±1% 1200±1% 1800±1%
    Coal powder dosng range/accuracy kg 300±1% 400±1% 600±1% 800±1%
    Water dosing range/accuracy kg 400±1% 500±1% 600±1% 800±1%
    Addtive dosng range/accuracy kg 30±1% 30±1% 30±1% 50±1%

    description2

    Product characteristics

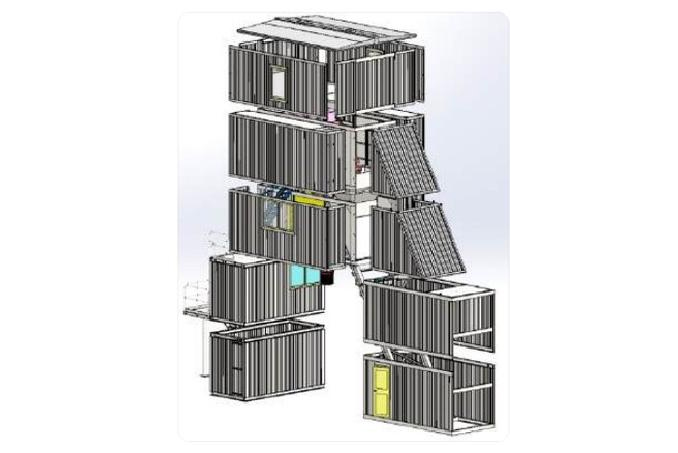

    HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (1)

    Quick installation and relocation

    The components are installed using a “block building” method; The disassembly and assembly time of the entire main building does not exceed half a day, which greatly improving installation efficiency and creating higher economic benefits.

    Integrated design

    Each system module is reasonably distributed within each container and standardized production.

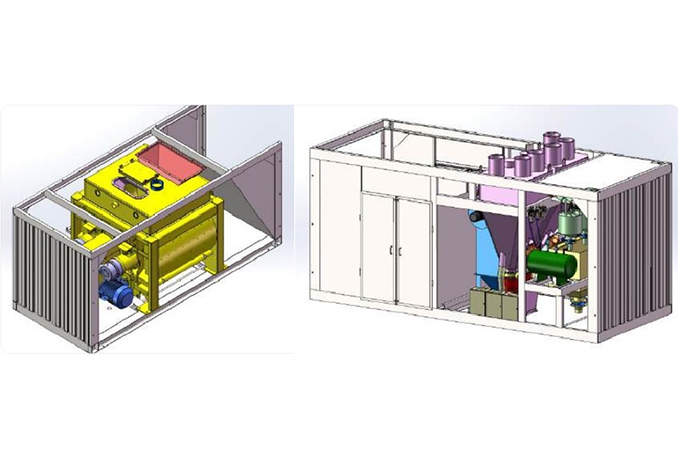

    HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (2)

    Compact structure

    Used in conjunction with a bucket, it occupies a small area and has high and utilization efficiency.

    Green and environmentally friendly

    The integrated internal design greatly reduces the impact of dust, vibration, and noise on the surrounding environment, making it more environmentally friendly.

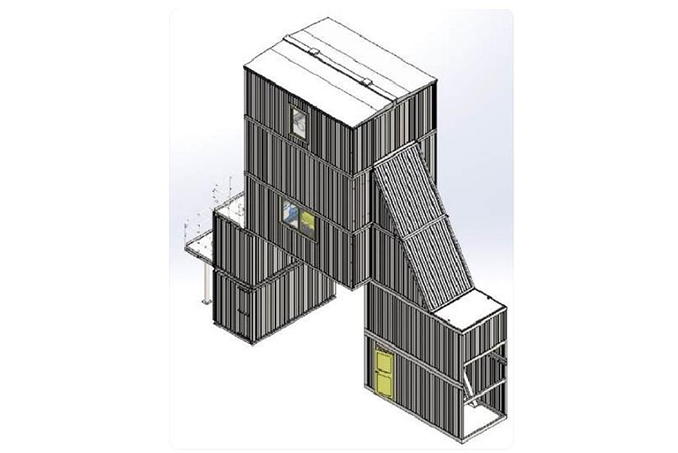

    HZS Series Bucket-Lifting Type Container Concrete Mixing Plant (3)

    Safe and stable

    It adopts steel plate pressure welding packaging without the need for external sealing, and there is no need for external high-altitude operations.

    High transportation efficiency

    There is no increase in transportation vehicles due to the use of frame structures, which is the same as the vehicles required for traditional mixing plants.
